Description

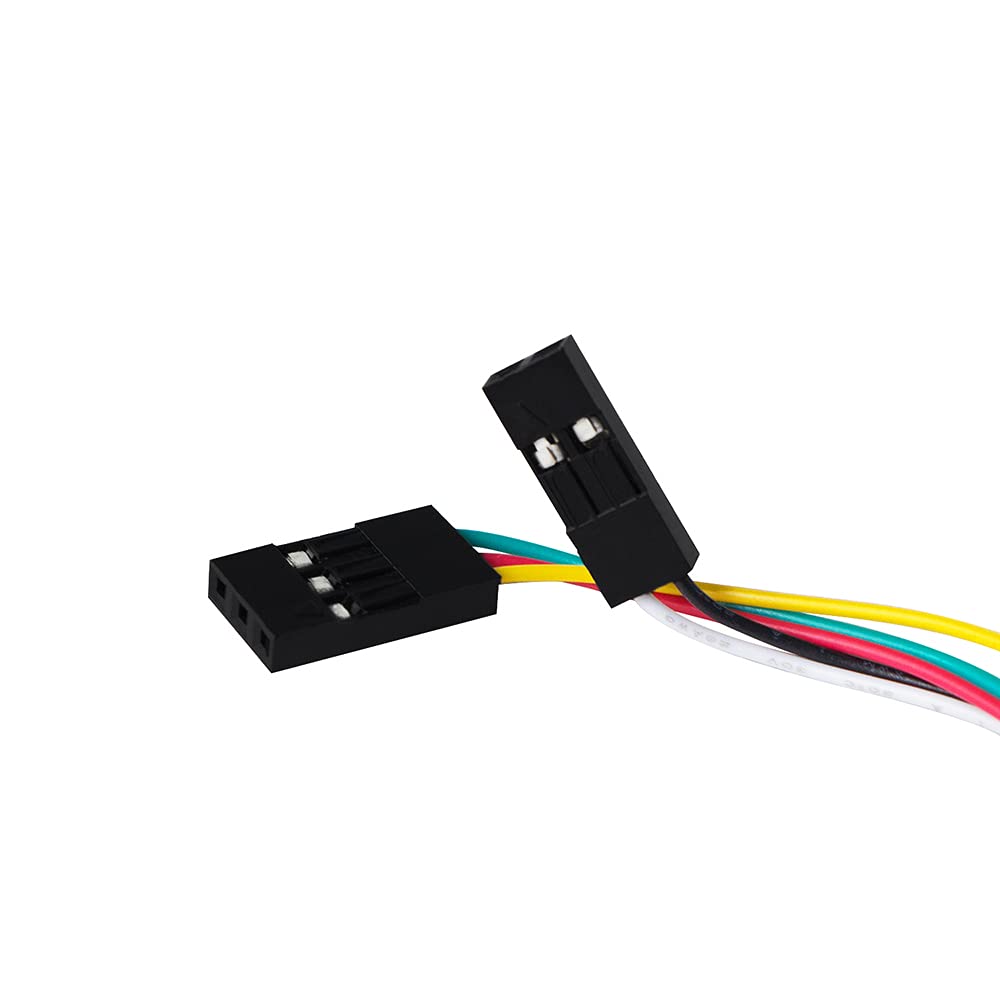

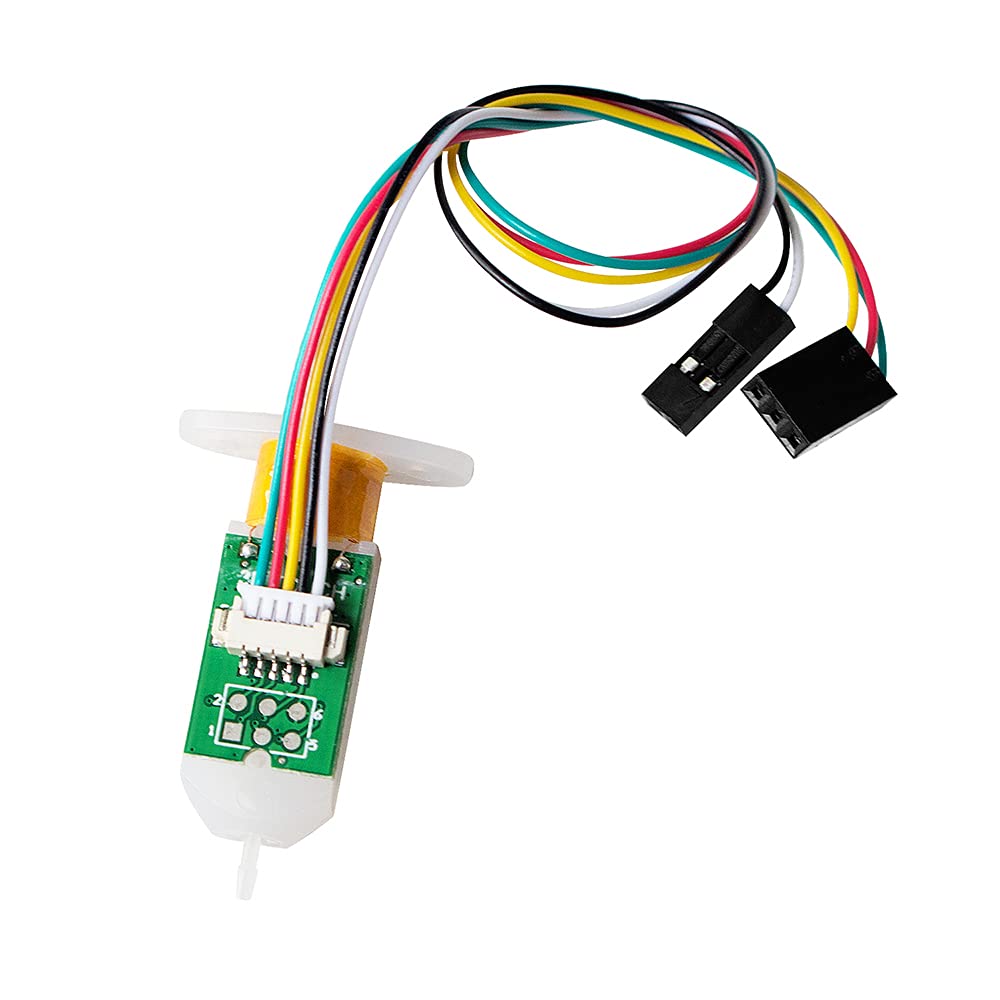

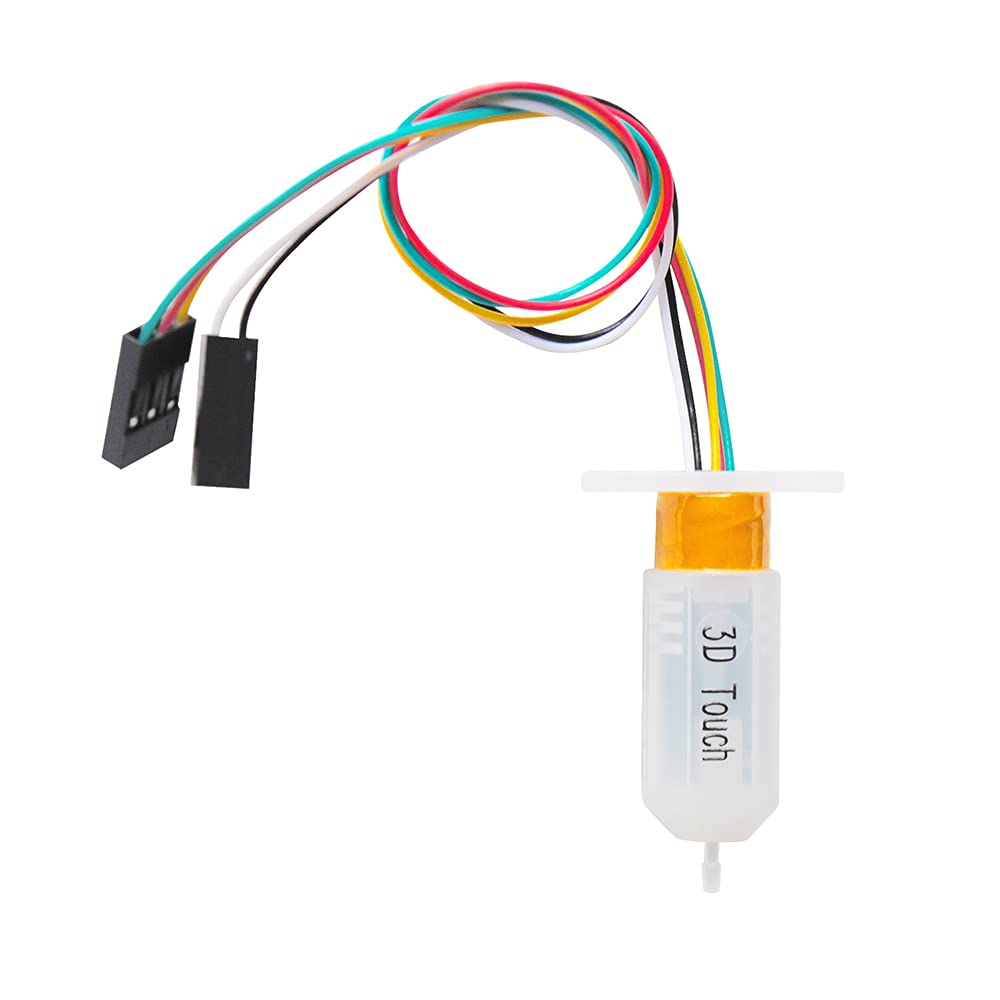

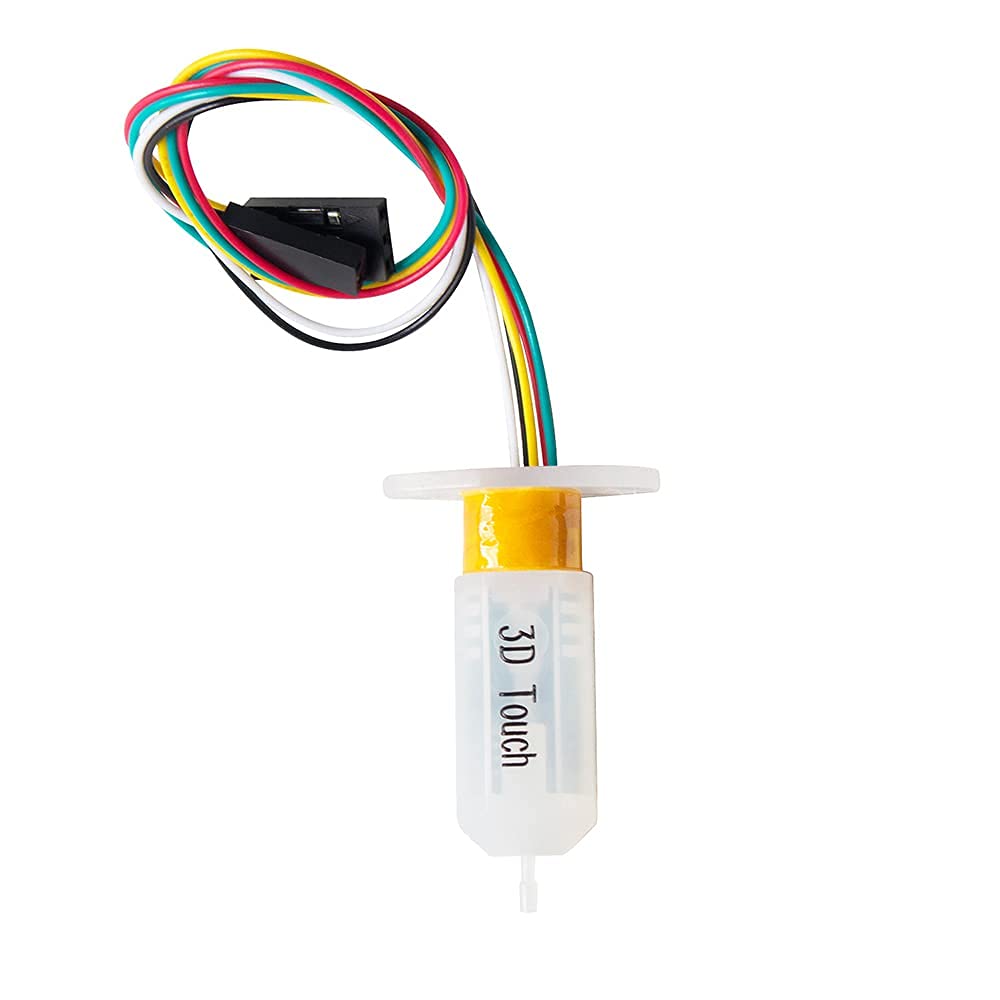

Overall : The 3D Touch auto leveling sensor is a device that uses the Hall edect to achieve leveling .The position of the point can be obtained by touching the point on the heated bed ,and then compensated by adjusting the Z-AXIS height during printing ,Printing can also be achieved even though the patform is not flat . Parameters: Voltage :5V current :15mA Max current (peak):300mA Shell material :PC Shell color :White translucent Cable length : Short:200mm Long :1000mm Wire: 3pin: Green :-GND RED:+5V Orange:Signal cable 2pin: Black:-GND White :Zmin Shipping list : 1x 3D Touch 1x 1000mm line 1x Winding terminal 2x M3X8 1x XH2.54,2P 4x M3X6 1x XH2.54,3P
Features
Upgrading Bed Leveling 3D Touch is an auto bed leveling sensor for most open-source 3D printers.Such as ANET A8,CR10 and Ender 3 series,ANYCUBIC i3 Mega,Geeetech A10.
Smart and Precise Sensor The 3D Touch could work with nearly any kind of bed materials,such as glasses,PCB,metals and so on.
Intelligence, self - check and alarm. Function of auto leveling is adopted to make it easier to use and to increase the success rate of shaping.
Warranty Every product passed QC before shipment. But if you have problem, we provide free return/exchange in 90 days, pls contact us.
